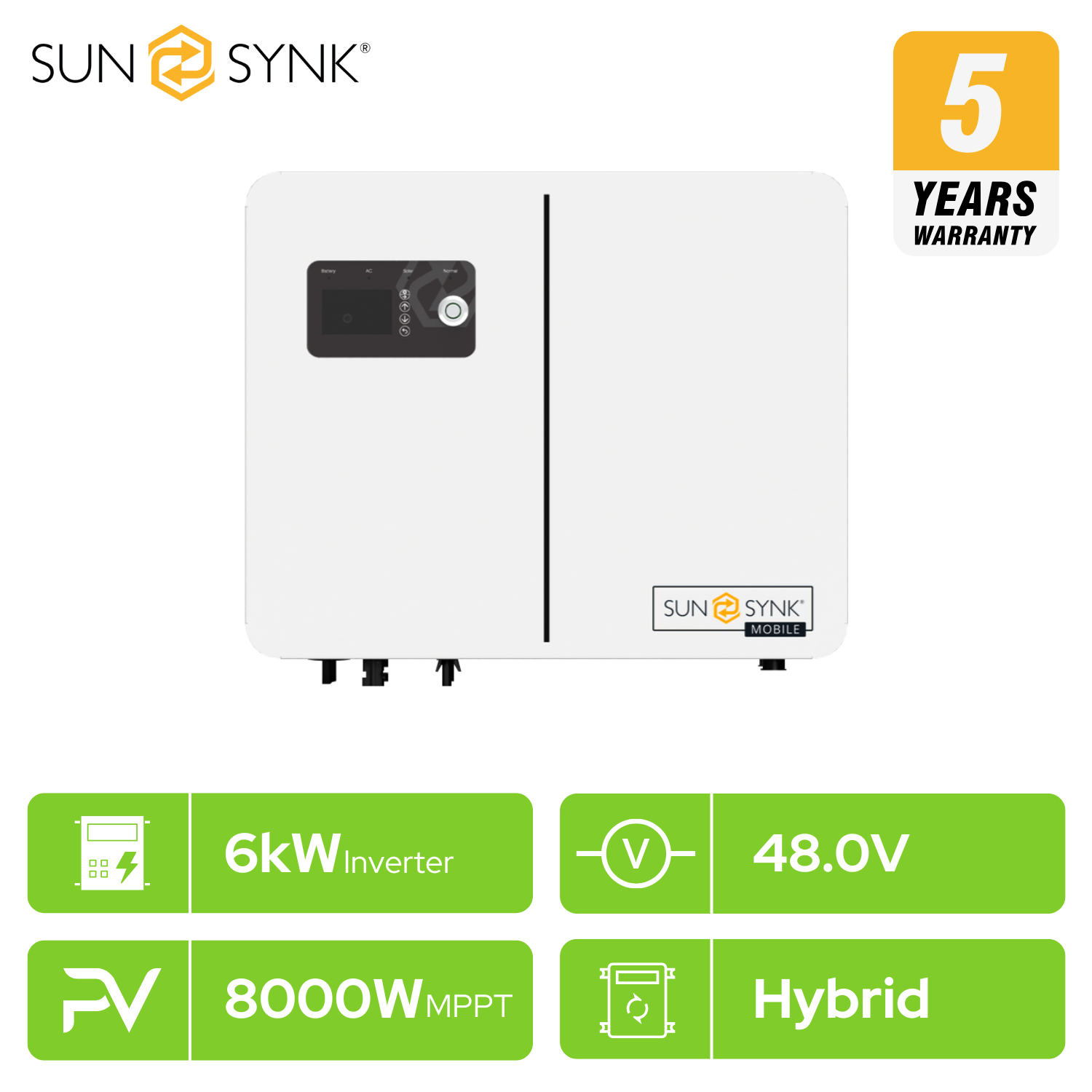

Sunsynk Lynks 6kW 1P Hybrid Inverter

Sunsynk 6kW Lynks Hybrid Inverter + Wifi Dongle

With Twin MPPT technology, it maximize solar energy harvest by adjusting the power output to match the peak efficiency of your solar panels throughout the day. Supporting both lithium-ion and lead-acid batteries, the Sunsynk Mobile Lynks offers flexible battery compatibility to suit your needs. Additionally, its IP41 rating ensures protection against solid objects such as dust, safeguarding your

Battery Input Parameters
Supported Battery Type: Li-Ion or Lead-acid
Nominal Battery Voltage: 48V
Battery Input Voltage Range: 40-60V
Max. Charge Voltage: ≤60V (Configurable)
Max. Charge Current: 100A (Configurable)
Max. Discharge Current: 130A (Configurable)
Battery Capacity (Recommended): 100-2000Ah
Charge for Li-Ion Battery Pack: Communicating with BMS of Battery Pack

PV String Input Parameters
Max. DC Input Power: 4000W x 2 = 8000W
DC Input Voltage: 500V
MPPT Voltage Range: 120-450V
Start-Up Voltage: 150V
Max. Input Current: 15 x 2 = 30A (2 MPPT Channels)

AC Output Parameters (Back-Up)(Feed to Essential Load)
Max. Output Power: 6000W
Max. Output Apparent Power: 6000VA
Peak Output Apparent Power: 12000VA
Max. Output Current: 26A
Nominal Output Voltage: 220/230/240Vac Single-Phase (Configurable)
Nominal Output Frequency: 50/60Hz (+/-0.2%) (Configurable)
Max. Bypass Current: 40A
Shift Time (Bypass and Inverter): 10ms
Output THDv (Resistor Load): <3%

AC Input Parameter (On-Grid) (Bypass to Essential Load & Charge the Battery/Feed to Home Load)
Max. Input Power: 6000W
Max. Output Power (Feed to Home Load): 6000W
Max. Apparent Input Power: 6000VA
Max. Apparent Output Power: 6000VA
Nominal Input/Output Voltage: 220/230/240Vac (Auto Adjusted to Fit Home Grid)
Nominal Input/Output Frequency: 50/60Hz (Auto Adjusted to Fit Home Grid)
Max. Bypass Current: 40A
Shift Time (Bypass and Inverter): 10ms

Efficiency
Max. Efficiency: 97.6%
Max. Battery to Load Efficiency: 94.0%
Europe Efficiency: 97.0%
MPPT Efficiency: 99.9%

This box contains:
• Lynks 6kW (main unit) • Wall mounting bracket
• Screw pack • Data logger (Sunsynk Wi-Fi)
• CT Coil (2 pin AERO - female connector) • 1x3 pin AC Load connector (female)
• 2 x MC4 connectors • 1x3 pin AC Grid connector (male)
• 2x Battery Connectors

Size :

514 x 420 x 140

15.5 KG
