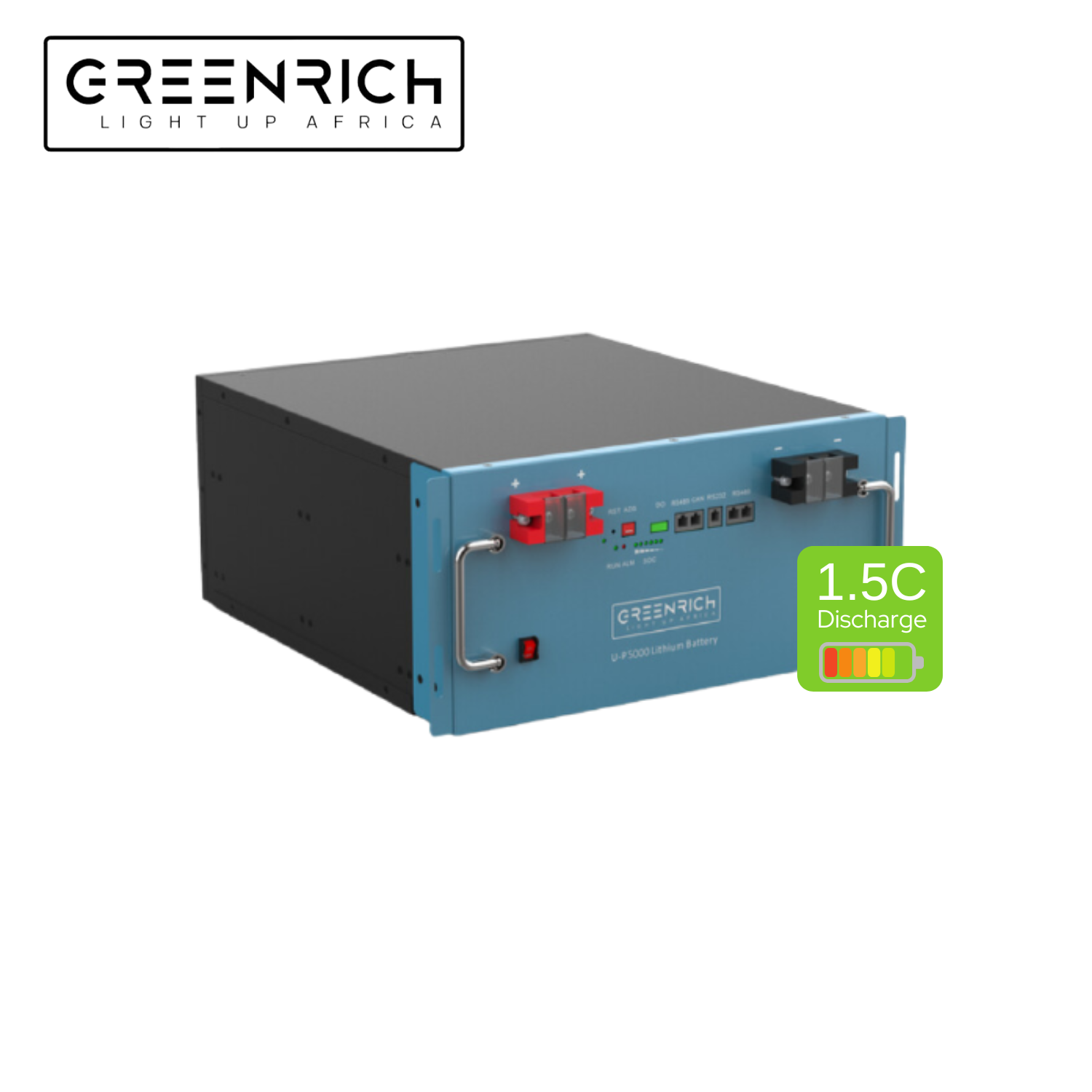

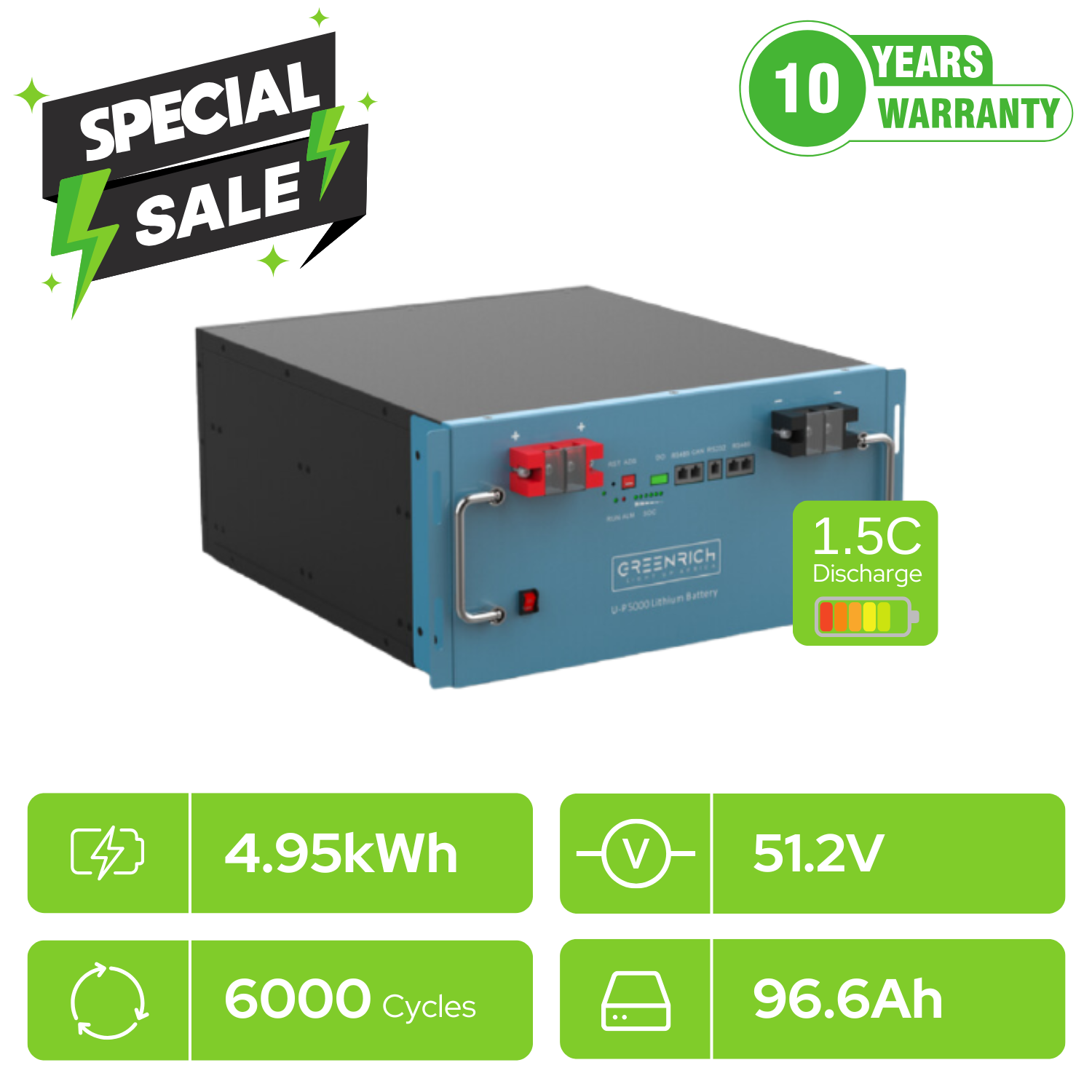

Greenrich UP5000 4.95kWh Battery

The U-P5000 High-Voltage Battery System is a high-capacity energy storage solution designed to meet the demands of larger residential and commercial applications. With its impressive energy storage capacity, the U-P5000 enables users to store and utilise a significant amount of energy generated by solar panels or other renewable sources. This battery system offers advanced features such as high-voltage compatibility, intelligent monitoring, and robust safety mechanisms. It is an ideal choice for energy-intensive applications, providing reliable power backup and load management capabilities. With a capacity of 4.95 kWh and a power output rate of 7500W, this battery ensures more power when you need it.

• Overvoltage & Undervoltage protection
• Short-circuit protection
• Low & High temperature charge protection
• Low & High temperature discharge protection
• Charge & Discharge over-current protection
• Dormancy function
• RS485 & Rs232 communication
• CAN communication

• Rated Voltage: 51.2V
• Nominal capacity: 96.6Ah | 4.95kWh

• Charge
mode CC/CV/CP
• Max.
Charge
Current (1) 80A
• Charging
cut‑off voltage 57.4V
• Discharge
mode CC/CP
• Discharging
cut‑off voltage 44.8V
• Max.
Discharge
Current (2) 150A
• Peak
Discharge
Current (3) 350A
(100ms)

1)
For
better
battery
life
cycles,
we
suggest
charge
in
43A(0.5C
@25°C)
2)
For
better
battery
life
cycles,
we
suggest discharge
in
43A(0.5C
@25°C)
3)
Peak
Current
excludes
repeated
short
duration
(less
than
1
00ms)
of
current
pattern.

• Dimensions: 222.6 x 442 x 512mm
• Weight: about 50.88kg

• Humidity
Operating: 5%
to
95%
Relative
Humidity
(Non‑condensing)
• Temperature Charge꞉
o‑+50°C/Discharge꞉
‑20‑+55°C
• Storage
Temperature: ‑20‑+45°C
(three
months)
/‑20‑+25°C
Cone
year)
• Shipment
status Voltage꞉
52V‑54V
SOC꞉
60%‑80%

10
years
warranty,
>
6000
cycles
life
All
information
contained
in
this
document
is
subject
to
change
without
notice.
