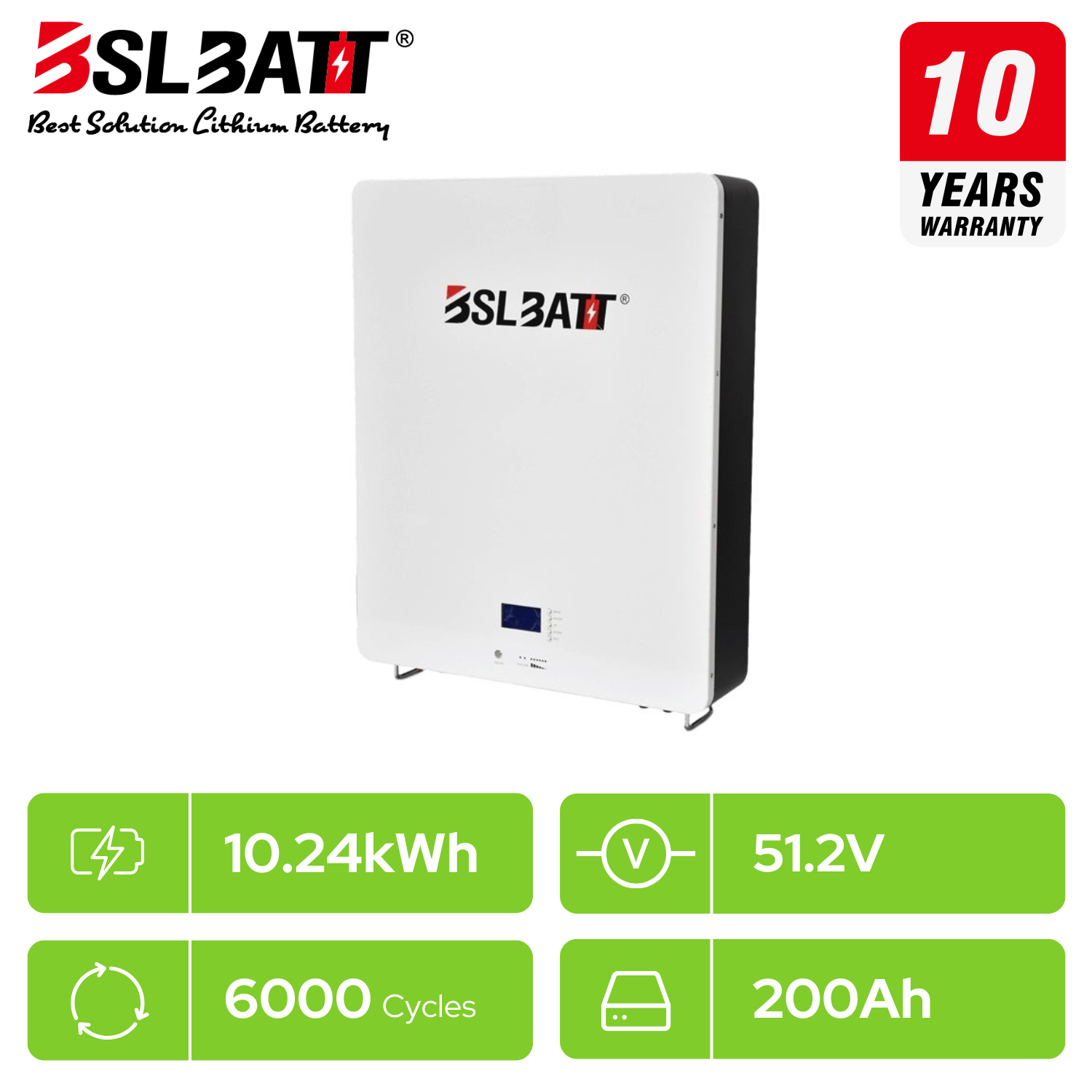

BSL Powerwall 10,2kWh Battery

This 10kWh lithium ion battery is the most classic Powerwall Battery for residential solar energy storage, with the advantages of high capacity, high power, low self-discharge, good temperature resistance, etc. It can be connected in parallel with 30 batteries to reach a maximum capacity of 307kWh (although your home may not have such a large wall).

The B-LFP48-200PW uses industry-leading BMS technology to support communication with 12 types of inverters at the same time, RS485 BUS: SRNE, Growatt, LuxPower, Deye, Voltronic; Can BUS: Deye, SOFAR, GoodWe, Growatt, Victron, Studer, SMA.

This 10kWh solar battery has passed the most stringent UL 1973 certification so that you can use it at home with confidence, we offer 10-year technical support and a warranty for this battery.

Long Battery Life

This LiFePO4 Wall-mounted battery has a cycle life of over 6000 cycles @ 80% DOD and is designed to last 10 years.

High Compatibility

This 10 kWh battery is compatible with most 48V inverters on the market and is already listed with Victron, Studer inverters.

BMS Protection

Built-in intelligent battery management system can provide various protection functions for Powerwall battery to avoid property loss in advance.

UL Standard Battery Pack

Battery is manufactured with automotive grade process, and the high quality module structure can provide longer life and stability for the battery.

DC Coupling

The 10kWh battery is a DC coupled battery system that is more suitable for your upcoming solar system installation with higher conversion efficiency.

10-year Warranty

To give you peace of mind that you're getting clean, sustainable energy, we're backing this 48V solar battery with a 10-year warranty.

Technical Specifications

Model	B-LFP48-200PW
Battery Type	LiFePO4
Nominal Voltage	51.2 V
Nominal Capacity	10.24 kWh
Cell ＆ Method	16S2P
Dimension	820*490*147 mm
Weight	95 Kg
Cycle Life	＞ 6000 cycles, 25℃
Design Life	＞ 15 Years（25℃ / 77℉）
Protection Level	IP20
Expansion	Up to 32 units in parallel
Warranty	10 years
Certification	UN38.3, UL1973, IEC62619, CEC
